Self-cleaning strainers

Maximize starch production uptime with the Alfa Laval Self-cleaning strainer (SCS). The strainer effectively removes oversized material, such as agglomerated starch, pipeline scale and other solids, to prevent blockage of the nozzles of separators, starch washing cyclonettes, and corn gluten dewatering vacuum filter spray bars. This contributes to trouble-free operation, prevents costly downtime, and improves the overall efficiency of your starch processes.

Self cleaning strainer 50 front

Self-cleaning strainer maximizes starch process uptime and minimizes equipment downtime

  • Reliable, continuous operation due to simple, rugged, and easy-to-maintain design
  • High volumetric capacity (up to 250 m3/h) at low pressure losses
  • Short delivery times due to availability of selected spare parts
  • Brushes, gaskets, and O-rings made of food-grade polymers
  • Optional discharge valve actuator for automatic operation

The Alfa Laval Self-cleaning strainer promotes reliable, continuous operation of starch processing lines by removing oversized material, such as agglomerated starch and pipeline scale, from

  • High-speed separator discharge nozzles, thereby preventing vibration
  • Cyclonette feed, overflow, and underflow nozzles in a starch washing systems, ensuring unimpeded flow
  • Spray bar nozzles, safeguarding the proper function and cleaning of the filter cloth on corn gluten dewatering vacuum filters

Available in three sizes, the self-cleaning strainers are capable of handling flow rates of approximately 0–45 m3/h (SCS50), 45–110 m3/h (SCS100), and 110–250 m3/h (SCS150).

.

Produk

.

Layanan

Layanan sistem makanan

Layanan sistem makanan Alfa Laval membantu memperluas kinerja sistem makanan Anda dengan memaksimalkan kinerja proses Anda. Hal ini memungkinkan Anda untuk:

  • Terus meningkatkan operasi Anda untuk mempertahankan keunggulan kompetitif
  • Memfokuskan pada waktu aktif, pengoptimalan, ketersediaan
  • Maksimalkan laba atas investasi sepanjang siklus hidup sistem makanan Anda

Pelajari lebih lanjut tentang penawaran layanan kami


Industri dan penerapan

.

Applications

The Alfa Laval Self-cleaning strainer effectively removes oversized material from:

  • starch suspensions fed into nozzle centrifuges
  • starch suspensions fed into starch washing systems
  • spent starch wash water used as wash water in Merco® primary separators
  • light gluten used as filter cloth wash water for corn gluten dewatering vacuum drum filters

Easy to install, operate and maintain

With its simple, rugged design, the Alfa Laval Self-cleaning strainer (SCS) is easy to install, operate and maintain. It can be installed either directly inline (SCS50), mounted on a stainless-steel supporting frame, or bolted with support brackets to a steel structure (SCS100 and SCS150). For automated operation, an optional actuator is available for the discharge valve. The self-cleaning effect ensures low maintenance.

Self cleaning strainer SC50.png

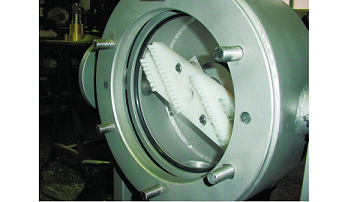

The Alfa Laval Self-cleaning strainer SCS50 consists of a housing, a screen with a back-up plate, and a cleaning device with brush block run by a gear motor.

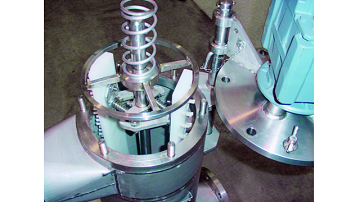

The Alfa Laval Self-cleaning strainer SCS100 and SCS150 has a swing shaft for the motor, housing cover, a drive shaft with snap-coupling, and guiding rod for quick opening during maintenance.

Self cleaning strainer SC100 SC150.png

.

How do self-cleaning strainers work

The Self-cleaning strainer has brushes that rotate slowly to ensure continuous movement of the retained oversized particles, thereby preventing particles from plugging or blinding the screen. This ensures smooth and unhampered flow of starch suspensions and wash water through the strainer. The accumulated oversized particles are removed through intermittent discharge.
